Expandable Craftsman House Plan
1-4 Br + Study, 1-3 B, 1 Br Apartment

CHP-BS-1477-2715-AD
Expandable Craftsman House Plan
1-4 Br + Study, 1-3 B, 1 Br Apartment

CHP-BS-1477-2715-AD<br />Expandable Craftsman House Plan<br />1-4 Br + Study, 1-3 B, 1 Br Apartment
Item# bs14772715ad
$1,399.00
Options:

CHP-BS-1477-2715-AD<br />Expandable Craftsman House Plan<br />1-4 Br + Study, 1-3 B, 1 Br Apartment

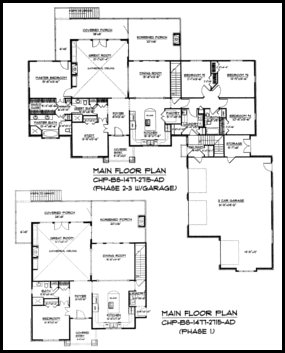

BS-1477-2715 Main Floor Plan

CHP-BS-1477-2715 Expandable House Plan Description and Details

This expandable, craftsman style, open floor plan offers a flexible way to afford a large luxury home in the future. Phase 1 features 1477 square feet with a large cathedral ceiling great room open to the dining room and spacious kitchen. The laundry is located in what will become the pantry in phase 2-3. The conveniently located covered and screened porches are part of phase 1 for immediate enjoyment. The 1 bedroom and bath will become a study and guest bath in the later building stages. The bedroom additions and garage/apartment can easily be built without disrupting the livability in the phase 1 section. Please note: These plans are specifically geared toward building in stages and contain extra construction sheets. Available options and pricing: See below.

Also available:

BS-1477-2715 Main Floor Plans
ENLARGED PLAN BELOW 		BS-1477-2715 Main Floor Plan (Phase 2-3)
PHASE 2-3 PLAN BELOW 		BS-1477-2715 3-d views
3-D IMAGES:
BS-1477-2715
WHAT'S IN A PLAN PCKG
COST TO BUILD:
$$(+)

"LAND POOR"
THE STORY BEHIND THE EXPANDABLE CRAFTSMAN HOUSE PLAN DESIGN

We originally designed this expandable craftsman style home for a young couple who spent most of their home building budget to purchase a gorgeous piece of land for their dream home. Although they eventually would need a large home, they could now only afford a small house. Not wanting to give up their great location in order to move to a larger house later on, they opted to build a flexible, expandable home, one that fit their needs and budget at a pace they could handle, avoiding the hassle of selling and moving. This expandable, build-in-stages method of affordable homeownership is an ideal solution for many young would-be homeowners.

FEATURES

  • Ideal for Building in Stages
  • Cathedral Great Room Ceiling
  • Open Floor Plan Layout
  • Split Bedroom Layout (p 2-3)
  • Kitchen with Large Island
  • Coffered Ceiling Dining Room
  • Screened Porch with Fireplace
  • Large Master Suite (p 2-3)
  • Walk-out Basement
  • Cost-Saving Construction Design

STYLE/CATEGORY

  • Expandable, Build-in-Stages
  • Craftsman Style
  • Transitional Style
  • Country Style Large Home Plan
  • Contemporary Open Floor Plan
  • Unique, Dramatic Style
  • Luxury Home Plan
  • Split Floor Plan
  • Garage Apartment
  • Gable Roof Style


ROOM SIZES AND PLAN SPECIFICATIONS:



ROOM SIZES (approx)
Great Room 21'-1"x 21'-4"
Kitchen 15'-5"x17'-8"
Laundry 5'-11"x5'-5"
Side Entry 3'-8"x3'-10"
Dining Room 15'-8"x13'-8"
Foyer 8'x 13'-6"
P-1 Br/Study 13'-5"x12'-6"
P-1 Bath 9'-5"x8'-8"
Foyer 8'x 13'-6"
Covered Front Entry 9'-9"x10'
Screened Porch 20'x16'
Covered Porch 28'x8', 6'x8'
Overall 48'x54'
PHASE 2-3
Pantry 5'-11"x5'-5"
Master Br 15'-8"x13'-6"
Master Bath 13'-4"x8'-6"
Enclosed Toilet 4'-8"x5'-2"
Master Closet 9'-4"x5'-8"
Mstr Dressing 6'x5'-8"
Bedroom #2 11'-1"x13'-6"
Br 2 Closet 2'-2"x5'
Bedroom #3 13'-9"x13'-6"
Br 3 Closet 2'-2"x4'-4"
Bedroom #4 10'-8"x13'-6"
Br 4 Closet 2'-2"x6'
Bath 5'-5"x9'-6"
Laundry 8'-4"x9'-6"
Garage 31'-5"x29'-5", 19'-5"x12'
Storage 9'-7"x8'
Apartment Living Rm 12'-5"x15'-5"
Foyer 8'x4'
Kitchen 11'-3"x8'-7"
Hall 6'-6"x6'
Bath 10'x8'-6"
Bedroom 14'-8"x10'-8"
Office 8'-5"x6'-8"
Overall 92'x94'

BS-1477-2715-AD PLAN SPECS
House Square Feet 1477 expandable to 2715
Bedrooms 1 to 4 + Study
Baths 1 to 3
Floors 1
Apartment Sq Ft 781
Bedrooms/Baths 1/1
Width 48' to 92' (p 2-3)
Depth 54' to 94' (p 2-3)
Height 24'-6" +/-
Foundation Type Basement, Walk-Out
Floor System Wood I-Joists
Exterior Finish Horizontal Siding, Stone Accents
Exterior Walls 2x4 Wood Studs
Roof Pitch 10/12 & 4/12
Roof Framing 2x10 Wood Rafters
Ceiling Height 1st Floor: 9', GR Cathedral: 18'
Apt. Ceiling Height 8'
Garage 2 or 3-car

    AVAILABLE OPTIONS AND PRICING:

  • Repro Set with 3-Car Garage/Apartment...$1399
  • Right Read Reverse Repro Set (3-car)...$1498
  • Repro Set with 2-Car Garage/Apartment...$1389
  • Right Read Reverse Repro (2-car)...$1488
  • PDF FILES are $100 less

Repro Plan Package

One set (28 sheets) 24"x36" reproducible master
All Repro Plans include free plan assistance and structural building schedules. See Typical Plan Sheets

To Order a Repro Plan Set

Select the combination of options from the drop-down options menu above and then click "Place Order" (follow instructions for discount on order page).

PDF File

Digital Copy (of Repro) prints-out at 24"x36"
See Typical Plan Sheets for details.
PDF Files are available in a separate section.
Purchase PDF File NOTE: Due to the large number of sheets for Build-in-Stages Repro Plan Sets, it is cheaper to purchase the PDF File and print only those sheets as needed during each construction phase.

Also See Recommended Alternatives

  • Large Craftsman House Plan LG-2715-GA
    • Contact us for questions about this plan
    If you are unable to connect to the link, manually send email to: info@carolinahomeplans.net
    VIEW 3-D IMAGES FOR BS-1477-2715-AD
    The layouts, concepts, ideas and all content on this website may not be reproduced, copied or utilized in any form or manner whatsoever for any purpose without the express written permission from Carolina Home Plans, LLC. The information on these web pages is for the sole purpose of reference and is not to be used for construction without purchasing the appropriate construction plan and accompanying License Release Form.

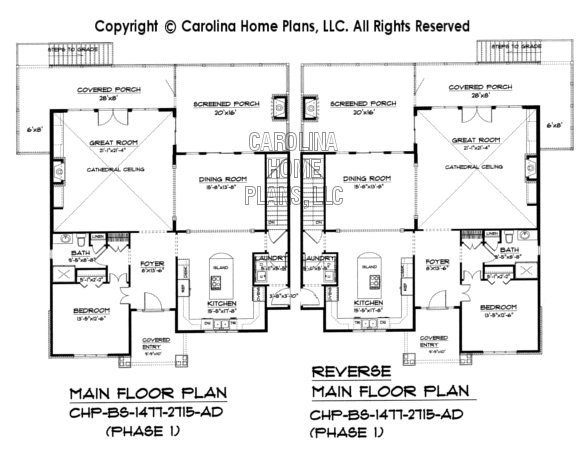

    BS-1477-2715 Main Floor Plans

    BS-1477-2715 MAIN FLOOR PLAN AND REVERSE (PHASE 1)

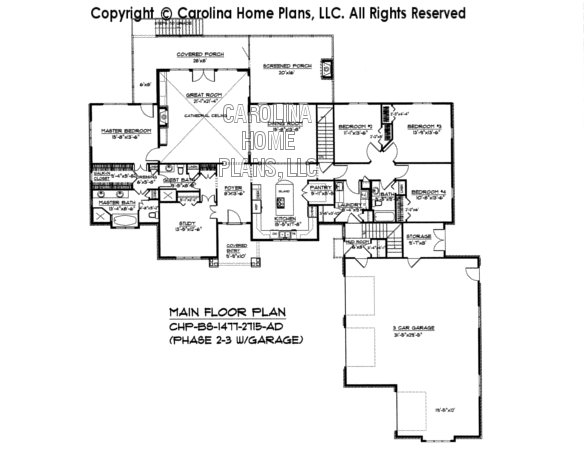

    BS-1477-2715 Main Floor Plan (Phase 2-3)

    BS-1477-2715 MAIN FLOOR PLAN (PHASE 2-3)

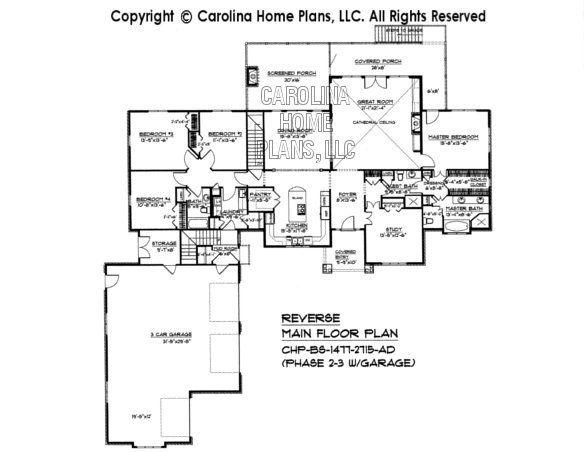

    BS-1477-2715 Reverse Floor Plan (Phase 2-3)

    BS-1477-2715 MAIN FLOOR PLAN (PHASE 2-3) - REVERSE

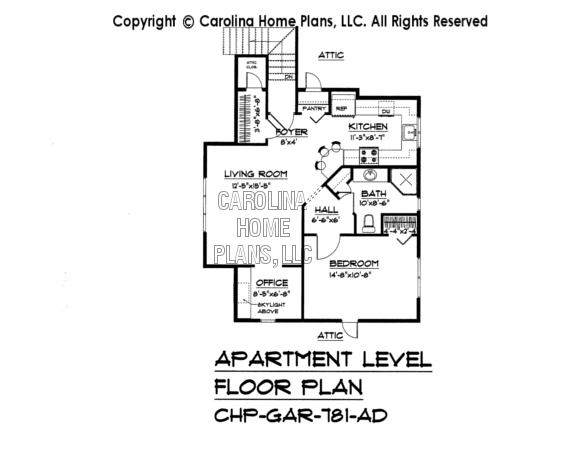

    BS-1477-2715 Apartment Floor Plan

    BS-1477-2715 GARAGE APARTMENT FLOOR PLAN

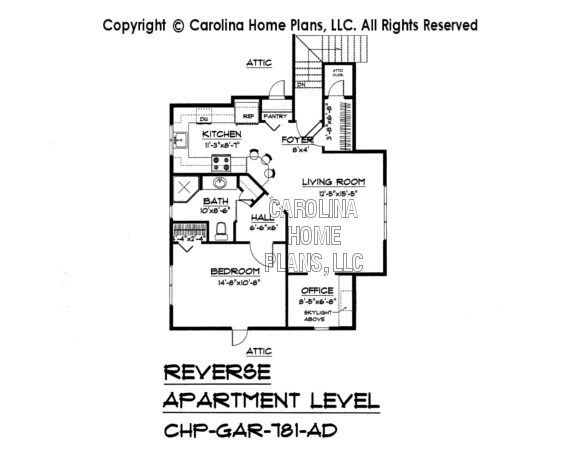

    BS-1477-2715 Reverse Apartment Floor Plan

    BS-1477-2715 GARAGE APARTMENT FLOOR PLAN - REVERSE
