Large Craftsman House Plan
4 Br + Study, 3 Baths, 1 Br Apartment

CHP-LG-2715-GA
Large Craftsman House Plan
4 Br + Study, 3 Baths, 1 Br Apartment

CHP-LG-2715-GA<br />Large Craftsman House Plan <br />4 Br + Study, 3 Baths, 1 Br Apartment
Item# lg2715ga
$1,249.00
Options:

LG-2715 Floor Plans

CHP-LG-2715 Large Craftsman House Plan Description and Details

This craftsman style house plan with split bedroom layout and open floor plan concept boasts 4 bedrooms plus a study with an oversized 3-car garage and a spacious 1 bedroom apartment above. The cathedral ceiling great room opens to a large, covered porch, as well as a spacious screened porch with outdoor fireplace (also accessible from the dining room). 9' ceilings throughout and transom windows add light and volume to this gracious craftsman style floor plan. A fully equipped kitchen with a large work counter provides ample space for family gatherings or multi-cooks. The conveniently located walk-in pantry and desk area compliment the luxury kitchen. The easily accessible mud room and laundry are located adjacent to the large garage with more storage or work space. The apartment provides ample living space for 1 or 2 occupants and features a small office alcove with skylight. This 4-bedroom plus study, craftsman style open floor plan is well suited for large families and frequent guests. Available options and pricing:
See below.

Also available:

LG-2715 Main Floor Plan
ENLARGED FLOOR PLAN BELOW
CUSTOM FLOOR PLAN CHANGES 		LG-2715 3-d views
3-D IMAGES FOR LG-2715-GA
WHAT'S IN A PLAN PCKG
COST TO BUILD:
$$(+)


Other House Plan Categories

All House Plans
with Porches 		All House Plans
with Open Floor Layout 		All House Plans
with Split Bedroom Layouts 		All House Plans
with Basements 		All House Plans
with Garages 		Sophisticated Rustic
House Plans 		Hillside House Plans
for Sloped Lots


FEATURES

  • Cathedral Great Room
  • Open Floor Plan Layout
  • Split Bedroom Layout
  • Screened Porch with Fireplace
  • Kitchen Island
  • Large Master Suite
  • Laundry & Mud Room
  • 3-Car Garage w/ Apartment
  • Walk-out Basement
  • Cost-Saving Construction Design

STYLE/CATEGORY

  • Craftsman Style
  • Large Open House Plan
  • Transitional Style
  • Country Style Large Home Plan
  • Contemporary Open Floor Plan
  • Unique, Dramatic Style
  • Home with in-Law Apartment
  • Split Floor Plan
  • Luxury Home
  • Gable Roof Style


ROOM SIZES AND PLAN SPECIFICATIONS:



ROOM SIZES (approx)
Great Room 21'-1"x 21'-4"
Kitchen 15'-5"x17'-8"
Pantry 5'-11"x5'-5"
Dining 15'-8"x13'-8"
Foyer 8'x 13'-6"
Study 13'-5"x12'-6"
Guest Bath 9'-5"x8'-8"
Master Bedroom 15'-8"x13'-6"
Master Bath 13'-4"x8'-6"
Enclosed Toilet 4'-8"x5'-2"
Master Closet 9'-4"x5'-8"
Master Dressing 6'x5'-8"
Bedroom #2 11'1"x13'-6"
Br Closet #2 2'-2"x5'
Bedroom #3 13'-9"x13'-6"
Br Closet #3 2'-2"x4'-4"
Bedroom #4 10'-8"x13'-6"
Br Closet #4 2'-2"x6'
Bath 5'-5"x9'-6"
Laundry 8'-4"x9'-6"
Front Entry 9'-9"x10'
Screened Porch 20'x16'
Covered Porch 28'x8', 6'x8'
Mud Room 6'x8'
Garage 31'-5"x29'-5", 19'-5"x12'
Storage 9'-7"x8'
Apt. Living Room 12'-5"x15'-5"
Foyer 8'x4'
Kitchen 11'-3"x8'-7"
Hall 6'-6"x6'
Bath 10'x8'-6"
Bedroom 14'-8"x10'-8"
Office 8'-5"x6'-8"

LG-2715-GA PLAN SPECS
Square Feet 2715
Bedrooms/Baths 3 4 + Study
Floors 1
Apartment Sq Ft 781
Bedrooms/Baths 1/1
Width/Depth 92'x 94'
Height-Front 24'-6" +/-
Foundation Type Basement, Walk-out,
Floor System Wood I-Joists
Exterior Finish Siding, Stone Accents
Exterior Walls 2x4 Wood Studs
Roof Pitch 10/12 & 4/12
Roof Framing Wood Rafters
Ceiling Height 9', Grt Rm: 18'
Apt. Ceiling Height 8'
Garage 3-Car

    AVAILABLE OPTIONS AND PRICING:

  • Repro Set...$1249
  • Right Read Reverse Repro Set...$1348
  • Convert ext. 2x4 walls to 2x6...add $120
    (Allow 4-7 days)
  • PDF FILES are $150 less

Repro Plan Package

One set (13 sheets) 30"x42" reproducible master
All Repro Plans include free plan assistance and structural building schedules. See Typical Plan Sheets

To Order a Repro Plan Set

Select the combination of options from the drop-down options menu above and then click "Place Order" (follow instructions for discount on order page).

PDF File

Digital Copy (of Repro) prints-out at 30"x42"
See Typical Plan Sheets for details.
PDF Files are available in a separate section (for $150 less).
Purchase PDF File
Contact us for questions about this plan
If you are unable to connect to the link, manually send email to: info@carolinahomeplans.net
VIEW 3-D IMAGES FOR LG-2715-GA
The layouts, concepts, ideas and all content on this website may not be reproduced, copied or utilized in any form or manner whatsoever for any purpose without the express written permission from Carolina Home Plans, LLC. The information on these web pages is for the sole purpose of reference and is not to be used for construction without purchasing the appropriate construction plan and accompanying License Release Form.

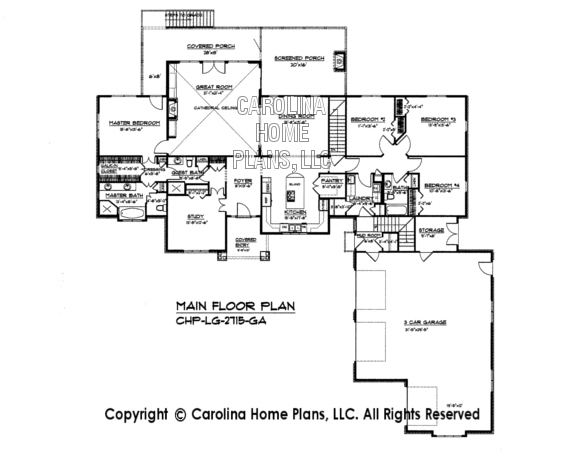

LG-2715 Main Floor Plan

LG-2715-GA MAIN FLOOR PLAN

LG-2715 Apartment Floor Plan

LG-2715-GA GARAGE APARTMENT FLOOR PLAN

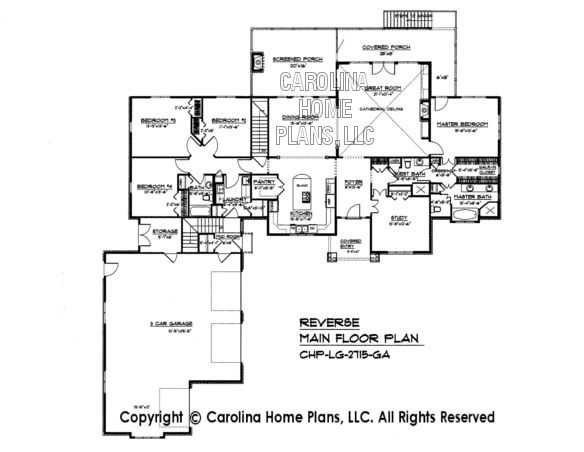

LG-2715 Reverse Main Floor Plan

LG-2715-GA MAIN FLOOR PLAN - REVERSE

LG-2715 Reverse Apartment Floor Plan

LG-2715-GA GARAGE APARTMENT FLOOR PLAN - REVERSE
