Low Cost Garage-Apartment Plan
1 Bedroom, 1 Bath, 2 Story

CHP-GAR-841-AD<br />Low Cost Garage-Apartment Plan<br />1 Bedroom, 1 Bath, 2 Story
Item# gar-841-ada
$487.00
Option:

GAR-841 Floor Plan

CHP-GAR-841 Plan Description and Details

With its traditional styling yet contemporary flair, this 1 bedroom, 1 bath, 3-car garage apartment features an office with skylight, lots of closet and storage space and a large back deck. The spacious kitchen boasts plenty of cabinets and a handy lunch counter with pass-thru. The sloped ceiling bedroom features built-in cabinets along the eave knee-walls and, for added convenience, the laundry is easily accessible from bedroom, bath and kitchen. The large 3-bay garage provides ample space for a workshop, as well as separate mechanical and storage rooms. This comfortable, compact garage-apartment plan is ideal for guests, in-laws or as living quarters while building the main house. Available options and pricing: See below.

Similar plan: Garage plan #841 is available at a special price when purchased together with either one of these companion house plans:

GAR-841 Upper Level Apartment Plan
ENLARGED FLOOR PLAN BELOW
GAR-841 Reverse Upper Level Apartment Plan
REVERSE FLOOR PLAN BELOW
GAR-841 3-d views
3-D IMAGES FOR GAR-841

WHAT'S IN A PLAN PCKG

COST TO BUILD:
$(0)


FEATURES

  • Ideal For Building in Stages
  • Living Room and Dining area
  • Semi-Open Floor Plan
  • Large Kitchen w/pass-thru
  • Large Private Bedroom
  • Office with skylight
  • Large Deck
  • Ample Storage
  • Convenient Upper Level Laundry
  • 3-Car Garage w/Worshop
  • Cost-Saving Construction Design

STYLE/CATEGORY

  • Tradition Style
  • Country Style
  • Southern Style
  • Contemporary Floor Plan
  • Transitional Style
  • Adaptable Garage/Apartment Plan
  • Build in Stages Small House Plan
  • Small Budget Apartment/Garage Plan
  • Economical Construction
  • Gable Roof Style


ROOM SIZES AND PLAN SPECIFICATIONS:



ROOM SIZES (approx)

Living Room 11'-5"x 14'-10"
Dining 9'x10'
Kitchen 11'-1"x13'-2"
Office 7'-8"x5'-10"
Bedroom 11'-8"x15'-8"
Bath 5'x10'-4"
Laundry Area 7'-6"x2'-6"
Foyer 6'-8"x8'
Deck 16'x10'
Garage Bay 1 & 2 23'-1"x23'-4"
Garage Bay 3 12'x19'-4"
Workshop 11'-6"x5'-8"
Mechanical 11'-5"x5'-4"
Storage 11'-8"x5'-4"
Garage Entry 8'x5'-8"
Stair Entry 7'-6"x4'-8"

GAR-841-AD PLAN SPECS

Square Feet 841
Bedroom 1
Bath 1
Floors 2
Garage 3-Car
Width 50' (incl. porch)
Depth 40' (incl. deck)
Height 23'-2" +/-
Foundation Type Slab
Floor System Wood Trusses
Exterior Finish Horizontal Siding
Exterior Walls 2x4 & 2x6 Wood Studs
Roof Pitch 10/12 & 4/12
Roof Framing Wood Rafters
Ceiling Height 8'-Apt & 8'-4"-Garage


    AVAILABLE OPTIONS AND PRICING:

  • Repro Set...$487
  • Right Read Reverse Repro Set...$546
  • Study Package Set...Not Available

Repro Plan Package

One set (12 sheets) 24"x36" reproducible master
All Repro Plans include free plan assistance and structural building schedules. See Typical Plan Sheets

To Order a Repro Plan Set

Select the combination of options from the drop-down options menu above (Repro Set As Shown) and then click "Place Order" (follow instructions for discount on order page).

PDF File

Digital Copy (of Repro) prints-out at 24"x36"
See Typical Plan Sheets for details. PDF Files are available in a separate section. Purchase PDF File
Contact us for questions about this plan
If you are unable to connect to the link, manually send email to: info@carolinahomeplans.net
VIEW 3-D IMAGES FOR GAR-841-AD
The layouts, concepts, ideas and all content on this website may not be reproduced, copied or utilized in any form or manner whatsoever for any purpose without the express written permission from Carolina Home Plans, LLC. The information on these web pages is for the sole purpose of reference and is not to be used for construction without purchasing the appropriate construction plan and accompanying License Release Form.

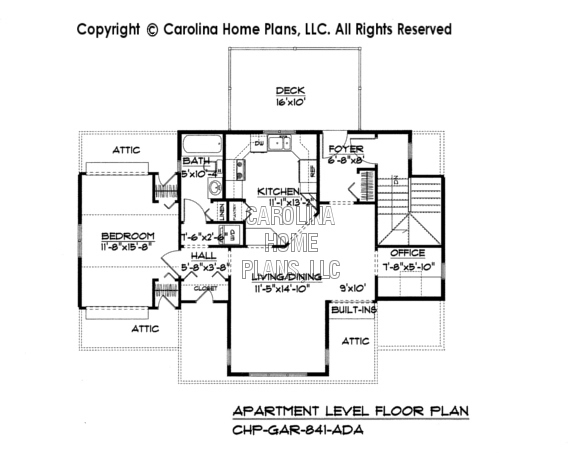

GAR-841 Upper Level Apartment Plan

GAR-841 UPPER LEVEL APARTMENT PLAN

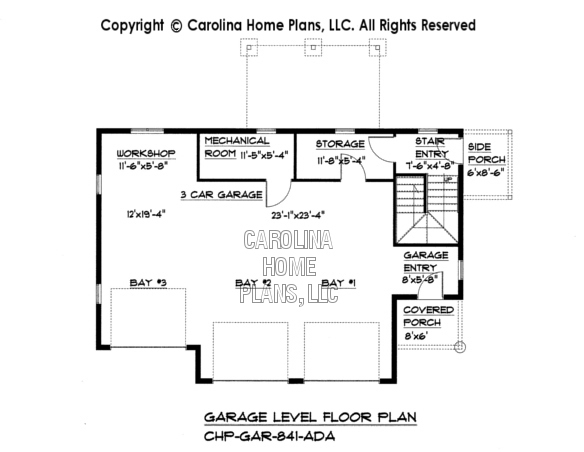

GAR-841 Lower Level Garage Plan

GAR-841 LOWER LEVEL GARAGE PLAN

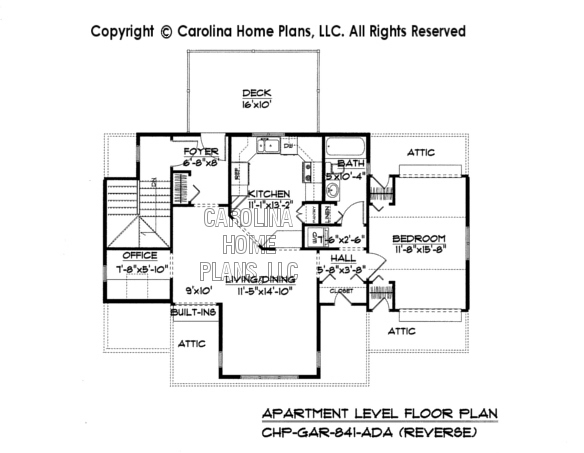

GAR-841 Reverse Upper Level Apartment Plan

GAR-841 UPPER LEVEL APARTMENT PLAN - REVERSE

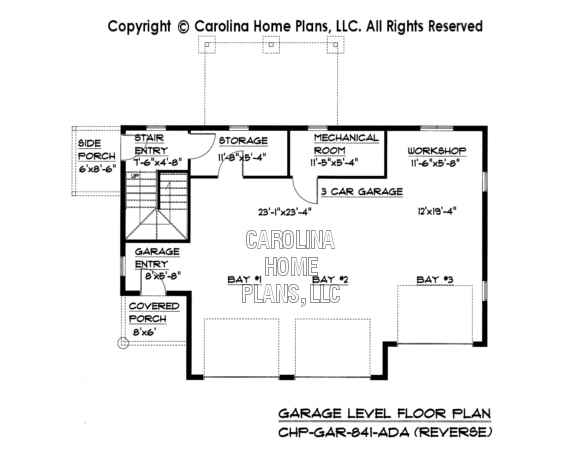

GAR-841 Reverse Lower Level Garage Plan
