CHP-LG-3096-GA
Large Hillside Ranch Home Plan
4 Br + Study, 3 Baths, 2 Story - Down

CHP-LG-3096-GA<br />Large Hillside Ranch Home Plan<br />4 Br + Study, 3 Baths, 2 Story - Down
Item# lg-3096-ga
$687.00
Options:

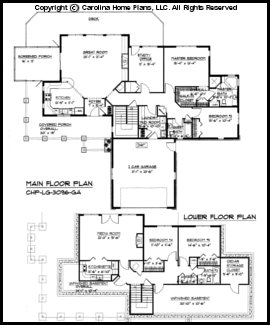

LG-3096 Main Floor Plan

CHP-LG-3096 Large Hillside Ranch Home Plan Description and Details

This large hillside contemporary ranch features 10' great room ceilings, transom windows and a spacious open floor plan layout. A wrap-around porch, large screened porch and back deck enhance this ranch home's livability. Convenient access to a well-appointed lower level makes this contemporary open floor plan ideal for large families or visiting friends and relatives. The main floor provides 2 bedrooms + study, 2 baths, a large laundry/mud area and abundant kitchen cabinet space. The 2-car garage, conveniently located off the mudroom, also provide attic access for ample storage. The lower level boasts a kitchenette, media room, 2 bedrooms, 1 bath, cedar closet, additional laundry, as well as unfinished basement space. Well suited for sloped lots, this large open layout contemporary house plan is an ideal choice for hillside properties. Available options and pricing: See below.

Similar 2-story design:
Also available with an unfinished basement:

LG-3096 Main Floor Plan
ENLARGED FLOOR PLANS BELOW

CUSTOM FLOOR PLAN CHANGES

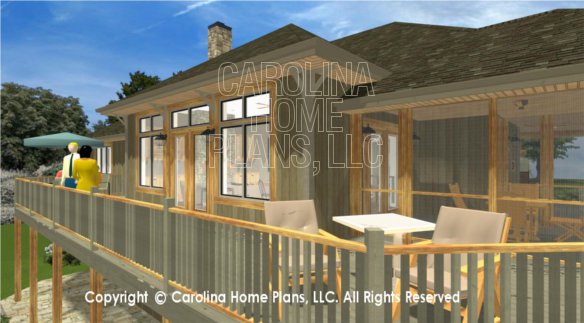

LG-3096 3-d views
3-D IMAGES FOR LG-3096-GA

WHAT'S IN A PLAN PCKG

COST TO BUILD:
$(+)



Other House Plan Categories

All House Plans
with Open Floor Layout
All House Plans
with Porches
All House Plans
with Garages
Hillside House Plans
for Sloped Lots


FEATURES

  • 10' Great Room Ceiling
  • Open Floor Plan
  • Wrap-around Porch
  • Screened Porch
  • Kitchen Lunch Counter
  • Finished Lower Level
  • Large Laundry/Mud Room
  • Basement and Walk-out
  • Designed for Sloped Lots
  • Cost-Saving Construction Design

STYLE/CATEGORY

  • Open Floor Plan Style
  • Sloped Lot, Hillside Home Plan
  • Large Ranch Home Plan
  • Southern Style House Plan
  • Country House Plan
  • Large Contemporary Style
  • 2-story Down House Plan
  • Golf Resort Home
  • Economical Construction
  • Hip Roof Style


ROOM SIZES AND PLAN SPECIFICATIONS:



ROOM SIZES (approx)

Great Room 23'-1"x 21'-4"
Kitchen 13'-9"x11'-1"
Foyer 7'x 5'-4"
Master Bedroom 15'-4"x13'-4"
Master Bath 9'-8"x10'-2"
Master Closet 6'-8"x11'
Bedroom #2 15'-6"x10'-4"
Guest Bath 8'-4"x6'-4"
Study/Bedroom 12'x15'-4"
Laundry 9'-6"x10'-10"
Covered Porch 30'x19'
Screened Porch 16'x12'
2-Car Garage 21'-1"x23'-6"
Media Room 22'-3"x15'-6"
Kitchenette 13'-6"x6'-10"
Bedroom #4 11'-10"x11'-6"
Bedroom #5 14'-6"x10'-4"
Bath #3 7'-9"x6'-2"
Cedar Closet 9'-8"x9'-0"

LG-3096-GA PLAN SPECS

Total Square Feet 3096
Main Floor Sq Ft 1812
Lower Level Sq Ft 1284
Bedrooms/Baths 4 + Study/3
Floors 2
Garage 2-Car
Width/Depth 78'x 60'
Height 21'-4" +/-
Foundation Type Walk-out Finished Basement
Floor System Wood Joists
Exterior Finish Non-Structural Stone & Siding
Exterior Walls 2x4 Wood Studs or 2x6
Roof Pitch 8/12
Roof Framing Rafters or Pre-Fab Trusses
Ceiling Height 8'; Great Rm: 10'-4"

    AVAILABLE OPTIONS AND PRICING:

  • Repro Set...$687
  • Right Read Reverse Repro Set...$786
  • Study Package Set...$512
  • Upgrade from Study Set...$274.80
  • Convert ext 2x4 walls to 2x6..add $105 (4-7 days)

Repro Plan Package

One set (16 sheets) 24"x36" reproducible master
All Repro Plans include free plan assistance and structural building schedules. See Typical Plan Sheets

To Order a Repro Plan Set

Select the combination of options from the drop-down options menu above (Repro Set As Shown) and then click "Place Order" (follow instructions for discount on order page).

PDF File

Digital Copy (of Repro) prints-out at 24"x36"
See Typical Plan Sheets for details. PDF Files are available in a separate section. Purchase PDF File

Study Package Set

PDF File (of Repro) prints-out at 17"x11"
See Study Package Set for details (available in a separate section). Purchase Study Set

    Also See Recommended Alternatives

  • Plan with unfinished basement MS-1812-AC
  • Similar Plan CR-3191-GA
Contact us for questions about this plan
Want a quote for modifications on this plan?
Email us with your "WISH LIST"
If you are unable to connect to the link, manually send email to: info@carolinahomeplans.net
VIEW 3-D IMAGES FOR LG-3096-GA
The layouts, concepts, ideas and all content on this website may not be reproduced, copied or utilized in any form or manner whatsoever for any purpose without the express written permission from Carolina Home Plans, LLC. The information on these web pages is for the sole purpose of reference and is not to be used for construction without purchasing the appropriate construction plan and accompanying License Release Form.

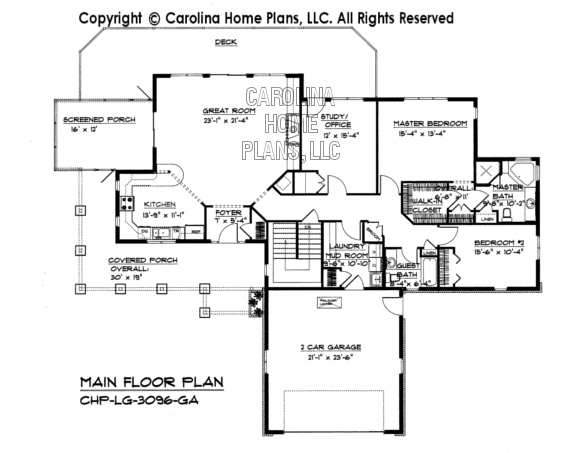

LG-3096 Main Floor Plan

LG-3096 MAIN FLOOR PLAN

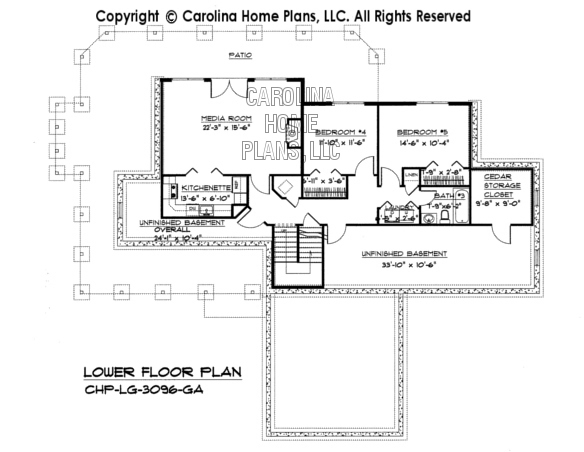

LG-3096 Lower Level Floor Plan

LG-3096 LOWER LEVER FLOOR PLAN

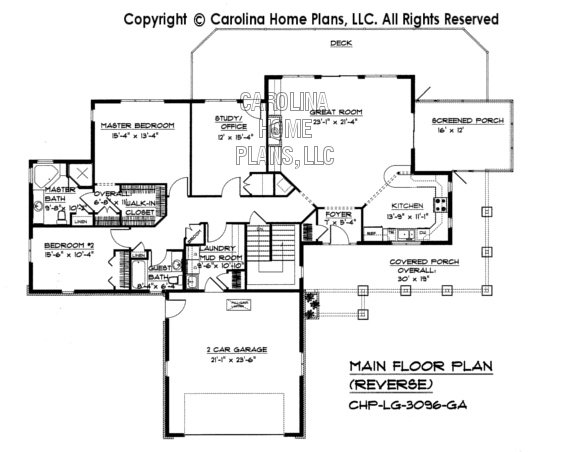

LG-3096 Reverse Main Floor Plan

LG-3096 MAIN FLOOR PLAN - REVERSE

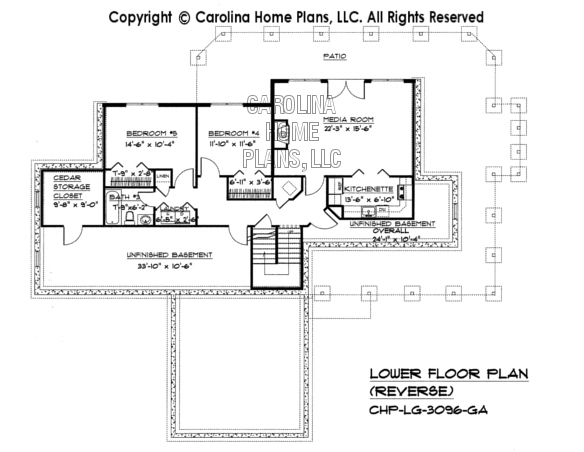

LG-3096 Reverse Lower Level Floor Plan

LG-3096 Reverse LOWER LEVER FLOOR PLAN
